Keeping Your Cyclone Rake Engine Happy: An Owner’s Guide

If you’re running your Cyclone Rake hard this season (we know you are!), the engine is doing the heavy lifting. A little routine attention now keeps it humming through spring, summer, fall, and beyond. Here’s a practical breakdown of what to know about oil, change intervals, and how to keep things running smoothly.

The shortcut: our Engine Maintenance Kit

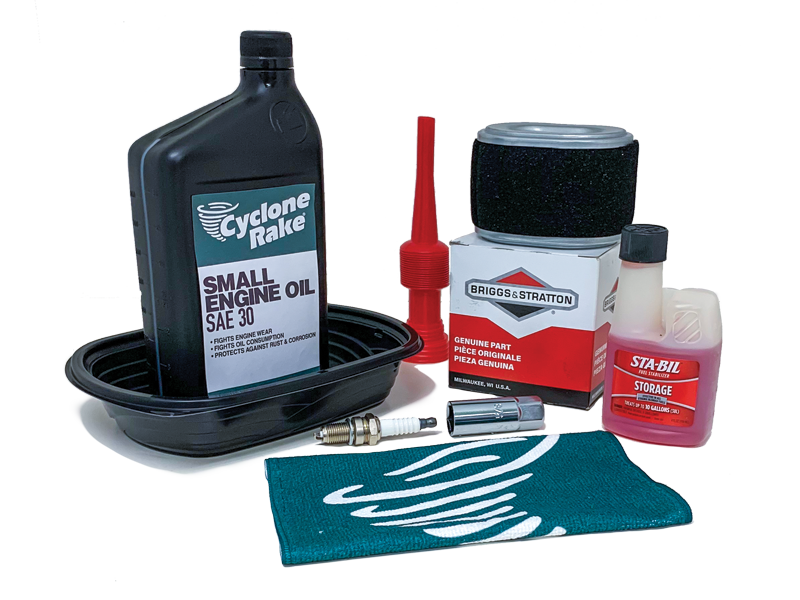

If you’d rather not hunt down each part separately, our Engine Maintenance Kit bundles everything you need in one box: air filter, oil, spark plug, spark plug wrench, fuel stabilizer, funnel, and a Cyclone Rake shop towel. One purchase, one box, ready to go.

Not sure which engine you have? Our Engine History Chart makes it easy to identify your model.

What oil to use

For all current Cyclone Rake engines, we recommend a detergent oil marked with API service classification SF, SG, SH, SJ, or higher. The right weight depends on the temperatures you’re running in:

•      Above 32°F: SAE 30 or SAE 10W-30

•      Below 32°F: SAE 5W-30

•      Synthetic alternative: 5W-30 works well in any temperature

•      What NOT to use: SAE 10W-40 is specifically not recommended for these engines

How much oil your engine takes

Smaller engines (18–20 oz):

•      6.5HP and 7HP engines

•      XR950 PRO engine

•      6.5HP Cyclonic Vanguard engine

Larger engines (26–28 oz):

•      8HP Vanguard (pull start and electric start)

•      10HP Vanguard (pull start and electric start)

How often to change oil

A simple cadence that keeps engines healthy:

•      After the first 5 hours of operation — especially on a new machine

•      Every 20 operating hours after that, or once per season — whichever comes first

•      More frequently if you’re running in dusty conditions or doing heavy work

Need the full how-to? Here’s our walkthrough: Engine Maintenance Kit Instructions (PDF).

Checking your oil level (correctly)

Three things matter more than people realize:

1.  Check on level ground. Tilted = bad reading.

2.  Clean around the dipstick before pulling it. Debris in oil is no fun.

3.  Screw the dipstick all the way down before pulling it back out. This is the most common source of a wrong reading.

The oil should sit between the “Add” and “Full” marks.

One quirk to know: not every Cyclone Rake engine uses a long dipstick like you’d find in a car.

•      XR950 and Vanguard 8/10HP engines use two short yellow fill/check plugs at the bottom of the crankcase. There’s no long dipstick — that’s by design.

•      Vanguard Cyclonic engines (12V3320136F1) use a more traditional dipstick tube.

If you have an XR950 and you’ve been wondering where the dipstick is — that’s why. Don’t try to retrofit one. Modifying the check method can lead to over- or underfilling, and it can affect your warranty.

Common oil pitfalls

Too high: Causes aeration and foaming. You think the engine is lubricated, but air pockets are forming. Result: poor lubrication and possible damage.

Too low: Less lubrication, more friction, more heat. Faster wear — or, in a bad case, engine failure.

One thing worth knowing: some of our engines have an oil sensor that stops the spark from firing if the level is off — too high or too low. That means an engine that won't start, or one that won't stay running, might just need its oil corrected, not a trip to the shop. Check the level before anything else.

If you’ve overfilled, the fix is straightforward: drain the excess, refill to spec, then re-check on flat ground with the dipstick fully seated.

Two things people often ask

“Does my engine have an oil filter?”

No. The Briggs & Stratton engines we use don’t have one. That’s part of why regular oil changes matter — clean oil is your only filtration.

“Does it have a fuel filter?”

Also no. Nothing to replace there. Use fresh fuel, add a stabilizer if you’re storing it more than a month, and you’re set.

Replacement parts

Oil drain plug (XR950 / VG Cyclonic): Briggs part #590678, available through Jack’s Small Engines or other Briggs retailers.

Oil drain plug (all Briggs & Stratton engines, general): Cyclone Rake part #01-01-812.

Tools to remove the plug vary by engine — the full help article has the wrench-size chart if you need it.

Have an older Tecumseh engine?

We don’t carry Engine Maintenance Kits for the older Tecumseh engines, but the parts are still out there. Jack’s Small Engines carries the common ones:

•      Air filter: Tecumseh #36046

•      Spark plug: Tecumseh #34645

The short answer

If you remember nothing else: use the right oil for your temperature, change it after the first 5 hours and then every 20 hours or seasonally, check the level on flat ground with the dipstick fully seated, and don’t overfill. Do that, and the engine will outlast a lot of your other yard equipment.

Questions?

If anything feels off — strange noise, unusual smoke, oil that looks wrong — don’t guess. Our team is happy to walk you through it. Contact us directly, give us a call, or schedule a callback. We’d rather hear from you before a small thing becomes a real problem.
