Cyclone Rake Z-10 - Information


THE Z-10

Our Largest Leaf Vacuum!
Maximum Power & Capacity

The Cyclone Rake Z-10 power leaf vacuum was engineered to handle the biggest and toughest property clean-up jobs. Now with a huge 10 HP Briggs & Stratton® Vanguard™ Engine, the Super-Flow Miracle Impeller, and the giant 10-inch diameter JetPath® Vacuum System, this Cyclone Leaf Rake is the most powerful Cyclone Rake we make. Combined with 415 gallons of capacity, you’ll get the job done right the first time. Clearing large lawns of heavy debris and overgrown grass has never been easier.

List Price: $3395.00  Sale Price: $2894.99

I'm Ready to Order

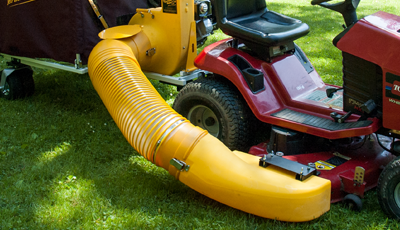

10-inch Diameter JetPath Vacuum System

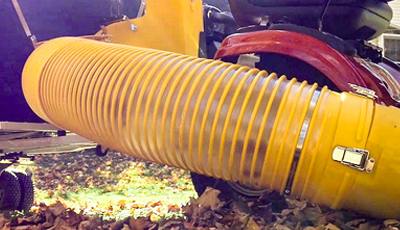

The 10-inch diameter JetPath Vacuum System has nearly three times more debris flow area than 6-inch vacuum systems. Its short, streamlined debris path greatly reduces the chance of debris getting stuck along the vacuum path. You'll get "one pass" performance with the most effective, clog-resistant vacuum system we’ve ever developed. Plus, get a FREE Tuff-PRO Urethane deck hose upgrade!

Learn more
Super-Flow Miracle Impeller

The Cyclone Rake Z-10 features the Super-Flow Miracle Impeller. It's the largest impeller we make and It generates more vacuum power than any other impeller in our line. The Miracle Impeller creates incredible vacuum power but flexes to prevent damage or jams.

Learn more

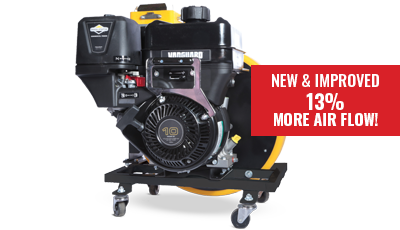

10HP Vanguard Pull-Start Engine - New & Improved

The new and improved 10HP Vanguard Engine from Briggs & Stratton provides more power to give your Z-10 13% more airflow than earlier 10 HP engines. All Briggs and Stratton Vanguard engines are built with numerous features not found on other equipment. The engine chassis even includes handles and wheels for easy transport and storage.

Learn more

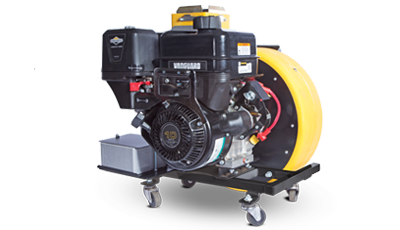

10HP Electric Start Upgrade

Power up your Briggs & Stratton engine with the simple turn of a key by upgrading to the effortless electric start option. No more throwing your back out when pulling on stubborn cords, just upgrade to the electric start and enjoy a painless engine starting every time.

Learn more
Available with our Standard or Blue Diamond Steel Liner

Both Z-10 Engine/Blower Units come equipped with our standard heavy steel liner inside. However, if your property has sandy soil, gravel, rocks, or other hard debris, we recommend getting your Z-10 equipped with our Blue Diamond Liner.

Learn more
415-Gallon Clean-up Capacity

With the Z-10's huge 415-gallon capacity, you'll clear and collect an incredible amount of lawn debris. This Cyclone Leaf Rake's capacity is equivalent to 44 bushels. That’s more than 12 of these 32-gallon barrels of debris in every collector load.

Learn more

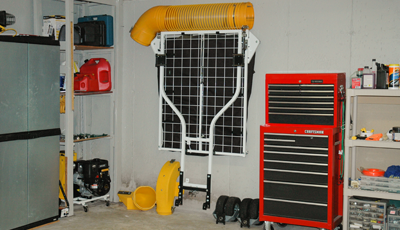

Folds Flat for Storage

The entire Cyclone Rake Z-10 collector unit folds up flat and hangs right on the wall with our garage wall mount. It can be stored almost anywhere in a few simple steps without any tools. The engine unit even has its own caster wheels for easy roll-away storage.

Learn more

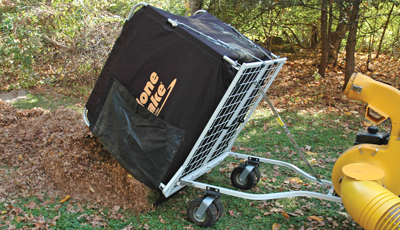

Easy-Flow Unloading & Never Jackknifes

The Easy-Flow collector design lets the debris fall right out when you unload so you can put your debris where you want it. Plus the Cyclone Rake's dual-pin hitch design allows for safer unloading. It will never jackknife when backing up to your dumpsite.

Learn more
FREE Dual-PRO Super Wheels

Tough and rugged, the Dual-Pro wheels offer all the strength you need for the heaviest collector loads. Constructed from extra heavy gauge steel with massive trunnion bearings, these wheels are designed for years of trouble-free service.

Learn more


Cyclone Rake Z-10

Make: Woodland Power Products, Inc.
Best for: 16 HP or larger Tractors
Recommended Deck size:  42" - 72" mower deck widths
Vacuum System: 10-inch Diameter
Impeller: 5 - Blade Super-Flow Impeller
Collector Capacity:  415 gals /55 cu. ft. /44 bushels
Collector Dumping Angle:  60o
Width: 48 inches
Height: 54 inches
Length: 79 inches
Unloading Method: Easy-Flow
Rigid Dumping Lock: Yes
Folds Flat: Yes


Hitch Type: 2 Pin Hitch- Never Jackknifes


Make: Briggs & Stratton® Vanguard™
Ft. lbs Torque: 10 HP/14.4 ft lbs torque
Displacement: 305 cc
Engine Type: OHV
Number of Cylinders: 1
Air Filter: Dual Element
Pre Cleaner: Yes
Oil Capacity: 26-28 oz
Lubrication: Splash
Oil Type: SAE 30W HD
Engine RPM: 3600
Cooling Method: Air Cooled
Electric Start: Available


Cyclone Rake Warranty: 3 years residential use
Engine Warranty: 3 years coverage from Briggs & Stratton



The Cyclone Rake Z-10 is built to order in our West Haven, CT factory, and ships in 1-2 business days from receipt of your order.

It will be delivered right to your home via our outstanding FedEx Home Delivery. You do not need to be home for this delivery and FedEx will deliver in a traditional FedEx truck – No tractor trailers in your driveway.
