Cyclone Rake Z-10- Leaf & Lawn Vacuum


  • alt view name
  • 1280x720-Z-10-Model-F17
  • FREE-Jack-and-Wheels
  • Z-10-Spring-2
  • Z-10-Fall-1
  • Z-10-Spring-1
  • Z-10-Fall-2
  • Z-10-unload-grass
1280x720-Z-10-Model-F17
Enlarge
1280x720-Z-10-Model-F17
  • 1280x720-Z-10-Model-F17
  • FREE-Jack-and-Wheels
  • Z-10-Spring-2
  • Z-10-Fall-1
  • Z-10-Spring-1
  • Z-10-Fall-2
  • Z-10-unload-grass


Maximum Power.
Maximum Capacity.

The Cyclone Rake Z-10 power leaf vacuum was engineered to handle the biggest and toughest property clean-up jobs. With its huge 10 HP Briggs & Stratton® Vanguard™ engine, the Super-Flow Miracle Impeller, and the giant 10-inch diameter JetPath® Vacuum System, this Cyclone Leaf Rake is the most powerful Cyclone Rake we make. Combined with 415 gallons of capacity, you’ll get the job done right the first time. Clearing large lawns of heavy debris and overgrown grass has never been easier.

$49 Shipping — To a Depot**
$149 Shipping — To Your Door**
Starting at: $2,245.00 $2,095.00
Get My Rate
Order Online



Features

600x200-free-jack-wheels
FREE 3rd Wheel Jack Stand
& Dual-PRO Super Wheels!

F17_InfoKit
Get A FREE Info-Kit!
Click Here

620x250-20Ann-Factory

Built Right Here for 20 Years

In today’s world, it’s sometimes difficult to know who is responsible for the product you’re purchasing. Well, you never have to wonder about that when you invest in the Cyclone Rake lawn and leaf vacuum or any of the other Cyclone Rake family of products. For 20 years we’ve been at the same location, selling and supporting this great family of products with a committed team of outdoor power equipment professionals. Click here to learn more about our Company and how your new Cyclone Rake is built and supported.

400x230-Z-10-JetPath

10-inch Diameter JetPath Vacuum System

The 10-inch diameter JetPath Vacuum System has nearly three times more debris flow area than 6-inch vacuum systems. Its short, streamlined debris path greatly reduces the chance of debris getting stuck along the vacuum path. You'll get "one pass" performance with the most effective, clog-resistant vacuum system we’ve ever developed. Plus, get a FREE Tuff-PRO Urethane deck hose upgrade!

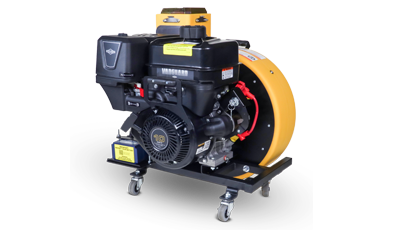

400x230-Z-10-10HP-engine

10 HP Vanguard Engine

The 10 HP commercial-grade Briggs and Stratton Vanguard engine on the Cyclone Rake Z-10 is built with numerous features not found on other equipment. The engine chassis includes handles and wheels for easy transport and storage. Electric Start Now Available!

400x230-Z-10-Hanging

Folds Flat for Storage

The entire Cyclone Rake Z-10 collector unit folds up flat and hangs right on the wall with our garage wall mount. It can be stored almost anywhere in a few simple steps without any tools. The engine unit even has its own caster wheels for easy roll-away storage.

400x230-XL-Super-Flow-Impeller

Super-Flow Miracle Impeller

The Cyclone Rake Z-10 features the Super-Flow Miracle Impeller. It's the largest impeller we make and It generates more vacuum power than any other impeller in our line. The Miracle Impeller creates incredible vacuum power but flexes to prevent damage or jams.

400x230-Z-10-415Gal

415-Gallon Clean-up Capacity

With the Z-10's huge 415-gallon capacity, you'll clear and collect an incredible amount of lawn debris. This Cyclone Leaf Rake's capacity is equivalent to 44 bushels. That’s more than 12 of these 32-gallon barrels of debris in every collector load.

400x230-Z-10-Easy-Flow

Easy-Flow Unloading & Never Jackknives

The Easy-Flow collector design lets the debris fall right out when you unload so you can put your debris where you want it. Plus the Cyclone Rake's dual pin hitch design allows for safer unloading. It will never jackknife when backing up to your dumpsite.

Specifications

Z-10-Specs

Cyclone Rake Z-10

Make Woodland Power Products, Inc.
Best for 16 HP or larger Tractors
Recommended Deck 42" - 72" mower deck widths
Vacuum System 10- inch Diameter JetPath
Impeller 5 - Blade Super-Flow Impeller
Collector Capacity 415 gals /55 Cu.ft. /44 bushels
Collector Dumping Angle 60o
Width 48 inches
Height 54 inches
Length 79 inches
Unloading Method Easy-Flow
Rigid Dumping Lock Yes
Folds Flat Yes

Towing

Hitch Type 2 Pin Hitch: Never Jackknifes

Engine

Make Briggs & Stratton® Vanguard™
Ft Lbs Torque 10 HP / 14.4 ft lbs torque
Displacement 305 cc
Engine Type OHV
Number Of Cylinders 1
Air Filter Dual Element
Pre Cleaner Yes
Oil Capacity 16.9 oz
Lubrication Splash
Oil Type SAE 30W HD
Engine RPM 3600
Cooling Method Air Cooled
Electric Start Available

Warranty

Cyclone Rake Warranty 3 years residential use
Engine Warranty 3 years coverage from B & S



Upgrades & Accessories

Cyclone Rake PRO Upgrades



Commercial-grade Performance and Durability.

The Cyclone Rake has a wide array of time saving upgrades and accessories to help you get your tough property cleanup jobs done quickly and easily. Our PRO Upgrades are valuable factory-installed options built right into the Cyclone Rake model of your choice. These contractor-tough items are a tremendous bargain when ordered with your Cyclone Rake, and they’ll provide years of added protection and performance through the toughest cleanup jobs. All our accessories are designed for years of service and are fully compatible with any Cyclone Rake model, even those built many years ago.

420x200-PRO-Upgrades-MDA

Mower Deck Adapter

This Cyclone Rake upgrade provides the best fit and lawn vacuum performance. Models available for most mowers.



420x200-PRO-Upgrades-Tuff-PRO-Hose

Tuff-PRO Urethane Deck Hose

Tuff-PRO Urethane Super hoses have twenty times the abrasion resistance of our standard hoses for extreme protection from damage and wear.


420x200-PRO-Upgrades-BDL

Blue Diamond Steel Liner

The Blue Diamond Liner is made from high quality alloy steel that has been heat treated, tempered and precision rolled. This PRO upgrade is recommended for protection against sandy soil or other hard debris.

420x200-PRO-Upgrades-Dual-wheels

Dual-PRO Super Wheels

Double the load carrying capacity of our standard Cyclone Rake wheels for maximum control and lawn protection. Perfect for larger Cyclone Rake models and sandy or wet properties.

420x200-PRO-Upgrades-E-start

E-Start Engine

For the maximum in convenience and ease of use, upgrade your XL or Z-10 Cyclone Rake with the new Briggs & Stratton® Vanguard™ E-Start Engine.




Cyclone Rake Accessories



Great options to get more work done with less effort.

These time-saving, work-saving, back-saving accessories give you amazing versatility with your Cyclone Rake. Plus, when your accessories are shipped with your Cyclone Rake, the accessories ship for free. That will save hundreds of dollars compared to buying them later.

PVP-LP-Main

Power Vacuum Pickup

Quickly clear areas you can't get with your tractor with the Power Vacuum Pickup.

EV-LP-Main

Estate Vacuum

Thirty-two feet in total length to clear 3,000 square feet of debris a single pass.

PUL-LP-Main

Power Unloader

Fifteen feet of reach to unload over a wall, deep in the woods or into a truck.

3rdJS-LP-Main


3rd Wheel Jack Stand

Hitch up to your mower with no lifting at all. Save time and energy when setting up.

WMK-LP-Main


Wall Mount Kit

Hang your Cyclone Rake right on the wall for easy storage almost anywhere.

RRC-LP-Main


Roof-Rack Carrier

This Cyclone Rake accessory is the easiest way to transport hoses and tools right to the work site with you.

                  CMPL-LP-Main

Power-Lift Unloader

Designed with a remote hand control and battery charge meter for maximum convenience for heavy duty users. Works with all Cyclone Rake models.

EMK-LP-Main


Engine Maintenance Kit

Everything you need to keep your engine running in one convenient pack.


420x200-3ptHitch


3-Point Hitch Adapter

If you have a larger tractor with a 3-point hitch. We have the adapter that will make hooking up your Cyclone Rake a breeze.



Value Packages



Save on bundles of the most often requested Cyclone Rake Accessories and PRO Upgrades.

Each season we feature a select group of value packages containing some of the most popular combinations of accessories and upgrades. Make sure you check out these time saving packages so you get the most out of your Cyclone Rake lawn and leaf vacuum.

420x200-Value-Summer-Start


The Cyclone Fall Starter Pack

The Cyclone Fall Starter Pack bundles some of our most common after market accessories to get you up and running quickly.


420x200-Value-Summer-vac-carry


The Fall Vac & Carry Pack

The Fall Vac & Carry Pack bundles all of our most convenient after market accessories for your lawn leaf vacuum to help you get all of your property cleanup done quickly and easily.

420x200-F17-Extreme-Value-Packs


The Fall Extreme Deal

The Fall Extreme Deal Pack is configured for the heavy duty jobs and available specifically for the Cyclone Rake XL & Z-10 models.


Shipping**

All Cyclone Rake machines are built to order in our West Haven, CT factory and ship in 1-2 business days. Choose the shipping option that suits you best.

If you have access to a pickup truck (or a large SUV) you can choose our Ship to Depot option. We'll ship your new Cyclone Rake to a Depot near you and you'll be responsible to pick it up at that location. Most Depots are open on weekdays between 8AM and 5PM. Click here to find the closest depot location. Please note that Depot Shipping typically adds 1-2 days of transit time so if you need your Cyclone Rake sooner, choose the To Your Door option.

If you'd like to get your Cyclone Rake delivered, you can choose the To Your Door option and we'll ship your Cyclone Rake right to your home via our outstanding FedEx Ground service ($149). You do not need to be home for this delivery and FedEx will deliver in a traditional FedEx truck – No tractor trailers in your driveway.

Product

Ship to a Depot  (Lower 48)

ShipTo Your Door (Lower 48)

Eastern Canada

Western Canada

All Other

Cyclone Rake Z-10 $49 $149 $399 $549 Call for Quote

Compare Models



classic
classic Classic
commander Commander
commercial-pro Commercial PRO
xl
XL
Z-10
Z-10
Cyclone Rake Prices

List Price: $1,195

Sale Price $1,095

List Price: $1,495

Sale Price $1,345

List Price: $1,695

Sale Price $1,545

List Price: $1,895

Sale Price $1,795

List Price: $2,245

Sale Price $2,095

Best for Smaller properties with slopes or congested areas Mid-size properties with moderate leaf cover Mid-size to large properties with heavy leaf cover Large properties,
estates or commercial use
Very large properties, estates or commercial use
Mower/Tractor Recommendations
Mower Guidelines 8 HP or larger. 10 HP or larger. 14 HP or larger 16 HP or larger 16 HP or larger.
Mower deck recommendations

26"-40" mower
deck widths

36"-46" mower
deck widths
38"-48" mower
deck widths
42"-54" mower
deck widths
42"-72" mower
deck widths
Product Specifications
Vacuum System 7-inch dia.
Vacuum System
8-inch dia. JetPath 8-inch dia. JetPath 8-inch dia. JetPath 10-inch dia. JetPath
Engine 5.5 HP Vanguard
(8.5 ft lbs torque)
6.5 HP Vanguard
(9.1 ft lbs torque)
6.5 HP Vanguard
(9.1 ft lbs torque)
8 HP Vanguard
(13.4 ft lbs torque)
10 HP Vanguard
(14.4 ft lbs torque)
Capacity 200 gallons
27 cubic feet
22 bushels
285 gallons
38 cubic feet
32 bushels
415 gallons
55 cubic feet
44 bushels
415 gallons
55 cubic feet
44 bushels
415 gallons
55 cubic feet
44 bushels
Impeller Miracle Impeller
4-blade
Miracle Impeller
4-blade
Hi-Flow
5-blade
Super-Flow
5-blade
Super-Flow
5-blade
Unloading method Standard Easy-Flow Easy-Flow Easy-Flow Easy-Flow
W x H x L 35” x 49” x 73” 43” x 49” x 73” 48” x 54 ” x 79” 48” x 54” x 79” 48” x 54” x 79”
Collector dumping angle 60° 60° 60° 60° 60°
Rigid dumping lock Yes Yes Yes Yes Yes
Hitch type 2-pin: Never jackknifes 2-pin: Never jackknifes 2-pin: Never jackknifes 2-pin: Never jackknifes 2-pin: Never jackknifes
Folds flat
for storage
Yes Yes Yes Yes Yes
Accessories Available
Estate Vacuum™ - 32 ft. Yes Yes Yes Yes Yes
Power Vacuum Pickup™ - 17 ft. Yes Yes Yes Yes Yes
Engine
Maintenance Kit
Yes Yes Yes Yes Yes
Roof Rack Carrier™ Yes Yes Yes Yes Yes
Power Unloader™ Yes Yes Yes Yes Yes
Wall Mount Kit Yes Yes Yes Yes Yes
3rd Wheel™
Jack Stand
Yes Yes Yes Yes Yes
Power Lift-Unloader Yes Yes Yes Yes Yes
3-point Hitch & Custom Hitches Yes Yes Yes Yes Yes
PRO Upgrades Available
Blue Diamond Liner Yes Yes Yes Yes Yes
Dual-PRO™
Super Wheels
Yes Yes Yes Yes Yes
Tuff-PRO™
Super Hose
Yes Yes Yes Yes Yes
Mower Deck Adapter(MDA) Yes Yes Yes Yes Yes
E-Start Engine No No No Yes Yes



If you're not sure which Cyclone Rake model is best for your property, call our Customer Service Specialists toll-free at  888-531-7253.
