Choosing the Right Cyclone Rake is Easy
This comparison chart highlights the product features for each of the five unique Cyclone Rake models. When choosing a lawn vacuum, remember there are no hard and fast rules about property size. Everyone’s needs are different. Sometimes smaller properties have more difficult requirements or heavier leaf cover than properties of larger acreage. Be sure to consider the number of trees that shed on your property and the actual lawn area. Also, consider whether your property is flat, hilly, open, or congested. Steep grades and tight spaces are better served by the Cyclone Rake Classic or Commander models. Larger mowers and properties with heavy leaf cover will benefit from the increased capacity and vacuum power of the Cyclone Rake Commercial PRO or XL models. For really tough property cleanup work, be sure to check out the 10HP, Cyclone Rake Z-10 with its industry-leading 10-inch diameter vacuum system.
Note: All prices are based on the standard configurations not on bundled or upgraded offers. All Cyclone Rakes are shown with optional Mower Deck Adapters. Mowers are not included.
|

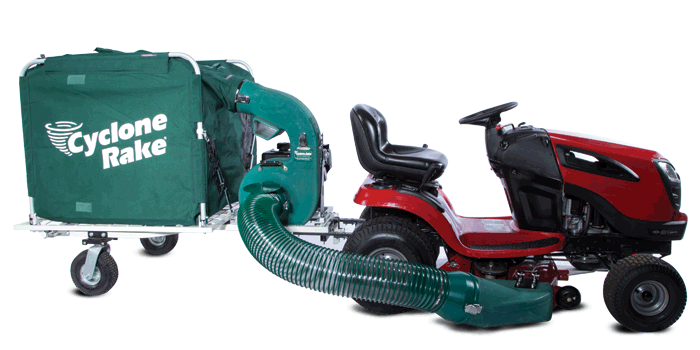

Classic Performance Edition
|

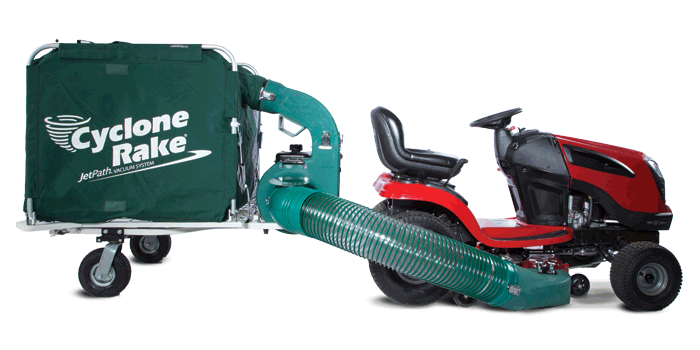

Commander Performance Edition
|

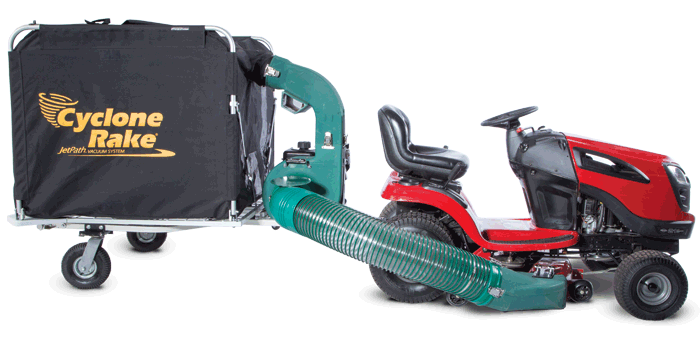

Commercial PRO Performance Edition
|
XL Premium Model
|
Z-10 Premium Model
|
List & Sale Prices |
List Price: $1,795
Sale Price $1,649.00
|
List Price: $2,095
Sale Price $1,875.00
|
List Price: $2,495
Sale Price $2,195.00
|
List Price: $2,995
Sale Price $2,699.00
|
List Price: $3,495
Sale Price $2,999.00
|
Best for |
Smaller properties with slopes or congested areas
|
Mid-size properties with moderate leaf cover |
Mid-size to large properties with heavy leaf cover |
Large properties, estates or commercial use |
Very large properties, estates, or commercial use |
Mower/Tractor Recommendations |
Mower Guidelines |
8 HP or larger. |
10 HP or larger. |
14 HP or larger |
16 HP or larger |
16 HP or larger. |
Mower deck Recommendations |
26"-40" mower deck widths
|
36"-46" mower deck widths |
38"-48" mower deck widths |
42"-60" mower deck widths |
42"-72" mower deck widths |
Product Specifications |
Vacuum System |
7-inch dia. Vacuum System |
8-inch dia. JetPath |
8-inch dia. JetPath |
8-inch dia. JetPath |
10-inch dia. JetPath |
Engine |
XR950 PRO (9.5 ft lbs torque) |
XR950 PRO
(9.5 ft lbs torque) |
XR950 PRO
(9.5 ft lbs torque) |
8 HP Vanguard (13.4 ft lbs torque) |
10 HP Vanguard (14.4 ft lbs torque) |
Capacity |
200 gallons 27 cubic feet 22 bushels |
285 gallons 38 cubic feet 32 bushels |
415 gallons 55 cubic feet 44 bushels |
415 gallons 55 cubic feet 44 bushels |
415 gallons 55 cubic feet 44 bushels |
Impeller |
Miracle Impeller 4-blade |
Miracle Impeller 4-blade |
Hi-Flow 5-blade |
Super-Flow 5-blade |
Super-Flow 5-blade |
Unloading method |
Standard |
Easy-Flow |
Easy-Flow |
Easy-Flow |
Easy-Flow |
W x H x L |
35” x 49” x 73” |
43” x 49” x 73” |
48” x 54 ” x 79” |
48” x 54” x 79” |
48” x 54” x 79” |
Collector Dumping Angle |
60° |
60° |
60° |
60° |
60° |
Rigid Dumping Lock |
Yes |
Yes |
Yes |
Yes |
Yes |
Hitch Type |
2-pin: Never jackknifes |
2-pin: Never jackknifes |
2-pin: Never jackknifes |
2-pin: Never jackknifes |
2-pin: Never jackknifes |
Folds Flat for Storage |
Yes |
Yes |
Yes |
Yes |
Yes |
Accessories Available |
Estate Vacuum™ - 32 ft. |
Yes |
Yes |
Yes |
Yes |
Yes |
Power Vacuum Pickup™ - 17 ft. |
Yes |
Yes |
Yes |
Yes |
Yes |
Engine Maintenance Kit |
Yes |
Yes |
Yes |
Yes |
Yes |
Roof Rack Carrier™ |
Yes |
Yes |
Yes |
Yes |
Yes |
Power Unloader™ |
Yes |
Yes |
Yes |
Yes |
Yes |
Wall Mount Kit |
Yes |
Yes |
Yes |
Yes |
Yes |
3rd Wheel™ Jack Stand |
Yes |
Yes |
Yes |
Yes |
Yes |
Power Lift-Unloader |
Yes |
Yes |
Yes |
Yes |
Yes |
3-point Hitch & Custom Hitches |
Yes |
Yes |
Yes |
Yes |
Yes |
PRO Upgrades Available |
Blue Diamond Liner |
Yes |
Yes |
Yes |
Yes |
Yes |
Dual-PRO™ Super Wheels |
Yes |
Yes |
Yes |
included |
Included |
Tuff-PRO™ Super Hose |
Yes |
Yes |
Yes |
Included |
Included |
Mower Deck Adapter(MDA) |
Yes |
Yes |
Yes |
Yes |
Yes |
E-Start Engine |
N/A |
N/A |
N/A |
Yes |
Yes |
6.5HP Vanguard Engine |
N/A |
Yes |
Yes |
N/A |
N/A |
If you're not sure which Cyclone Rake model is best for your property, call our Customer Service Specialists toll-free at 888-531-7253.
We're here to help!
