CRS XL - Information

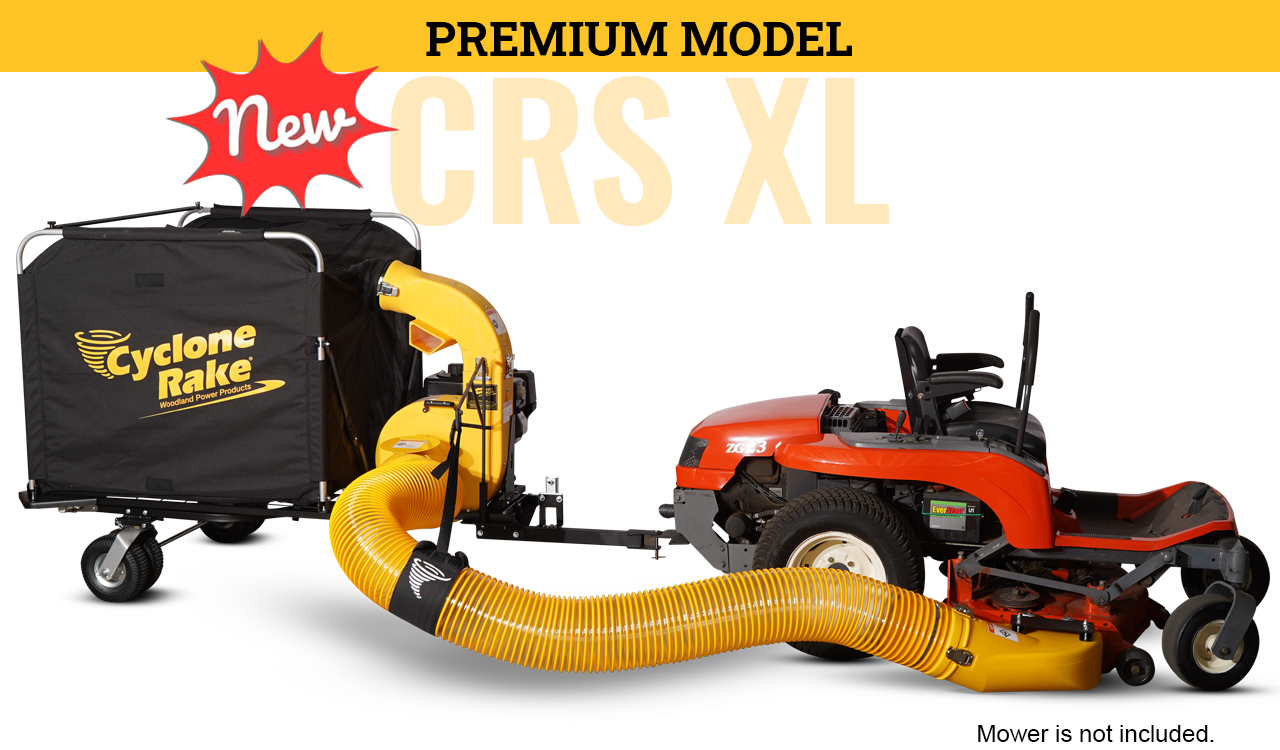

THE CRS XL

Extra Large Capacity.
Extra Quick Yardwork.

The Revolution in Single Pin Leaf Vacuums

The CRS XL's exceptional vacuum power and extra-large capacity make it perfect for larger properties and commercial use. This top-of-the-line model comes standard with a Briggs & Stratton® Vanguard™ 8HP Engine, 5-Blade Super-Flow Miracle Impeller, and 8-inch diameter vacuum system with an upgraded Tuff-PRO Urethane Deck Hose. With 415 gallons of capacity, you'll be amazed to see the amount of debris that's collected in every load. The CRS XL will have your property looking its best in no time.

List Price: $3125.00  Sale Price: $2824.99

I'm Ready to Order


FEATURES, BENEFITS & OPTIONS

Advanced Hose Management System

Our extended hose hanger and unique "hose hammock" work together to keep the longer hose required for a single-pin system off the ground. This innovative design reduces drag and minimizes bunching during turns, making the system easier to maneuver. We've opted for a more durable urethane hose, unlike competitors who use lightweight PVC hoses. It's more abrasion-resistant, and its weight helps it maintain position better during use, contributing to the overall stability of the system.

Improved Wheel Setup

We've introduced a new wheel assembly that significantly improves maneuverability and stability. Tested to support over 1,000 pounds, this robust system can easily handle wet leaves and grass, maintaining performance even when the vacuum is full.

8-inch Diameter Vacuum System

The 8-inch diameter vacuum system on the CRS XL is nearly 75% larger than smaller 6-inch systems commonly used. This means much more debris capacity and far fewer clogs, even with heavy, wet material.

Learn more
Super-Flow Miracle Impeller

Our Super-Flow Miracle Impeller™ is engineered to be even more powerful than our original Miracle Impeller. When combined with the 8HP engine, the CRS XL delivers 70% more vacuum power than our Cyclone Rake Commercial PRO model. This kind of power makes large property cleanup almost effortless.

Learn more
8HP Vanguard Engine

This 8HP commercial-grade Briggs & Stratton Vanguard™ engine is the finest engine line built by Briggs & Stratton. Real contractor power and durability for years of tough use.

Learn more
8HP Electric Start Upgrade Option

This 8HP commercial-grade Briggs & Stratton Vanguard™ engine is the finest engine line built by Briggs & Stratton, offering real commercial power and durability for years of tough use. Upgrade your CRS XL with an electric start feature for added convenience. With this upgrade, you'll power up with the simple turn of a key to quickly and effortlessly be on your way to handling your tough lawn cleanup jobs.

Learn more
Available with our Standard or Blue Diamond Steel Liner

The CRS XL comes standard with our standard heavy-duty steel liner. However, if your property has sandy soil, gravel roads, or other hard debris, we recommend getting your CRS XL equipped with our Blue Diamond Liner.

Learn more
415-Gallon Clean-up Capacity

Larger properties are easy to clean up with the CRS XL's huge 415-gallon capacity. That equals 55 cubic feet or 44 bushels. More than a dozen big 32-gallon lawn barrels. So, you get more work done in less time, with fewer trips to unload.

Folds Flat in Minutes

You don't have to give up your garage to own a lawn vacuum. The CRS XL goes from fully assembled to conveniently stored without any tools, in just a few minutes. The CRS XL folds flat, just 8 inches thick. You can even hang it on the wall for easy storage using our garage wall mount. The engine unit rolls away on its own caster wheels.

Learn more


SPECIFICATIONS

CRS XL

Make: Woodland Power Products, Inc.
Best for: 16 HP or larger Tractors
Recommended Deck size:  42" - 60" mower deck widths
Vacuum System:  8- inch Diameter
Impeller:  5 - Blade Super-Flow Impeller
Collector Capacity:  415 gals /55 cu.ft. /44 bushels
Collector Dumping Angle:  60o
Width: 48 inches
Height: 54 inches
Length: 91 inches
Unloading Method: Easy-Flow
Rigid Dumping Lock: Yes
Folds Flat: Yes

Towing

Hitch Type: 1 Pin Hitch

Engine

Make: Briggs & Stratton® Vanguard™
Ft. lbs Torque: 8 HP/13.4 ft lbs torque
Displacement: 305 cc
Engine Type: OHV
Number of Cylinders: 1
Air Filter: Dual Element
Pre Cleaner: Yes
Oil Capacity: 26-28 oz
Lubrication: Splash
Oil Type: SAE 30W HD
Engine RPM: 3600
Cooling Method: Air Cooled
Electric Start: Available

Warranty

Cyclone Rake Warranty: 3 years residential use
Engine Warranty: 3 years coverage from Briggs & Stratton



SHIPPING

The CRS XL is built to order in our West Haven, CT factory, and ships in 1-2 business days from receipt of your order.

It will be delivered right to your home via our outstanding FedEx Home Delivery. You do not need to be home for this delivery and FedEx will deliver in a traditional FedEx truck – No tractor trailers in your driveway.



Product

Shipping To Your Door
(When shipped within the lower 48 states.)

All Other
CRS XL $199 FREE
Call for Quote
