CRS Commander - Information

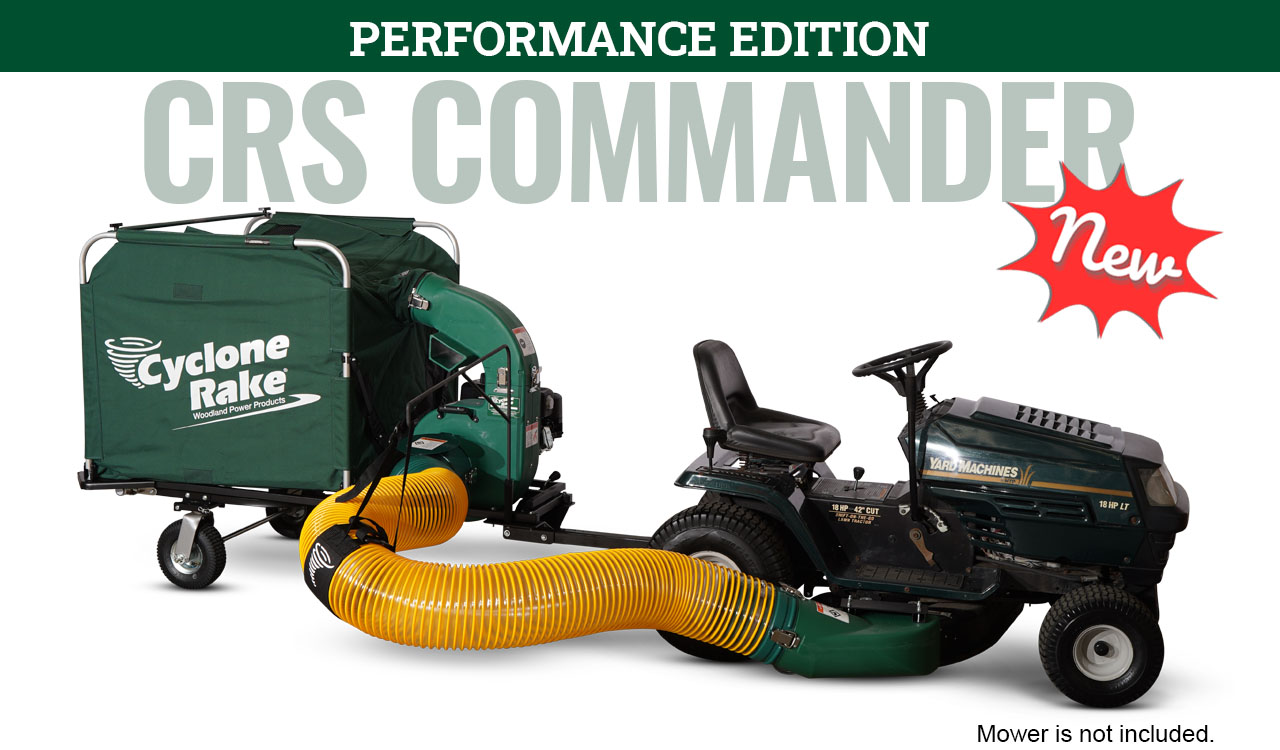

THE CRS COMMANDER

Affordable Power.
Big Results.

The Revolution in Single Pin Leaf Vacuums

The Cyclone Rake CRS Commander is perfect for mid-size properties. Its single-pin design offers enhanced maneuverability while still providing amazing power. This Cyclone Rake comes standard with a Briggs & Stratton® XR950-PRO engine with a 2-Year Warranty and our patented 4-Blade Miracle Impeller that delivers great vacuum performance. Its 8-inch diameter vacuum system provides superior debris flow and powerful clog resistance. It can handle 285 gallons of debris. So, you'll clear more area, finish faster, and have your yard looking its best all year.

List Price: $2295.00  Sale Price: $2094.99

I'm Ready to Order


FEATURES, BENEFITS & OPTIONS


Advanced Single-Pin Configuration

The CRS Commander features our new single-pin setup, offering enhanced turning capabilities for those comfortable with a single-pin system. Our engineering expertise ensures a sturdy and maneuverable design that handles the stresses of regular use while providing the advantages of a single-pin system.


Improved Wheel Setup

We've introduced a new wheel assembly that significantly improves maneuverability and stability. Tested to support over 1,000 pounds, this robust system can easily handle wet leaves and grass, maintaining performance even when the vacuum is full.


Advanced Hose Management System

Our extended hose hanger and unique "hose hammock" work together to keep the longer hose required for a single-pin system off the ground. This innovative design reduces drag and minimizes bunching during turns, making the system easier to maneuver. We've opted for a more durable urethane hose, unlike competitors who use lightweight PVC hoses. It's more abrasion-resistant, and its weight helps it maintain position better during use, contributing to the overall stability of the system.


8-inch Diameter Vacuum System

The CRS Commander's 8-inch diameter vacuum system provides superior debris flow for improved clog resistance. We've optimized the hose diameter and streamlined the flow path to ensure great lawn vacuum performance.

Learn more

The Original Miracle Impeller

The Commander's patented 4-blade Miracle Impeller's unique construction generates tremendous vacuum power. Plus, it acts like a bulletproof vest to protect the Cyclone Rake from the damage of hard objects that can mistakenly be vacuumed into the system.

Learn more

XR950-PRO Engine/Blower Unit

The Cyclone Rake Commander features a Briggs & Stratton® XR950-PRO engine that will power through your toughest jobs. With 9.5 ft.-lbs. of torque and paired with the miracle impeller you’ll be able to clear everything from your property.

Learn more

Easy Storage

True to our heritage, the CRS Commander can be taken down and stored away in a corner of your garage or shed in less than 10 minutes - all with no tools required.

Learn more

6.5HP Vanguard Engine Upgrade Available

Give your Commander lawn vacuum an added boost by upgrading your engine to the Briggs & Stratton Vanguard Cyclonic Engine and get peak performance. A commercial grade engine designed to reduce noise, the 6.5HP Vanguard also upgrades your warranty to a total of 3 years for residential use and 1 year for commercial use.

Learn more

Available with Our Standard or Blue Diamond Steel Liner

The Commander Engine/Blower Units come equipped with our standard heavy steel liner inside. However, if your property has sandy soil, gravel, rocks or other hard debris, we recommend getting your Commander equipped with our Blue Diamond Liner.

Learn more


SPECIFICATION

CRS Commander

Make: Woodland Power Products, Inc.
Best for: 10 HP or larger Tractors
Recommended Deck: 36" - 46" mower deck widths
Vacuum System: 8- inch Diameter JetPath
Impeller: 4 - Blade Miracle Impeller
Collector Capacity: 285 gals /38 Cu.ft. /32 bushels
Collector Dumping Angle: 60o
Width: 43 inches
Height: 49 inches
Length: 87 inches
Unloading Method: Easy-Flow
Rigid Dumping Lock: Yes
Folds Flat: Yes


Towing

Hitch Type: 1 Pin Hitch


Engine

Make: Briggs & Stratton XR950-PRO
Ft. Lbs Torque: 9.5 ft lbs torque
Displacement: 208 cc
Engine Type: OHV
Number Of Cylinders: 1
Air Filter: Dual Element Cartridge
Pre Cleaner: Yes
Oil Capacity: 20 oz
Lubrication: Dura-Lube Splash Lubrication
Oil Type: SAE 30W HD
Engine RPM: 3600
Cooling Method: Air Cooled
Electric Start: Not Available


Warranty

Cyclone Rake Warranty: 2 years residential use
Engine Warranty: 2 years coverage from Briggs  & Stratton


SHIPPING

The CRS Commander is built to order in our West Haven, CT factory, and ships in 1-2 business days from receipt of your order.

It will be delivered right to your home via our outstanding FedEx Home Delivery. You do not need to be home for this delivery and FedEx will deliver in a traditional FedEx truck – No tractor trailers in your driveway.

Product

Shipping To Your Door
(When shipped within the lower 48 states.)

All Other
CRS
Commander		 $199 FREE
Call for Quote
